1/2" Mandrel for Mini Buffing Wheels

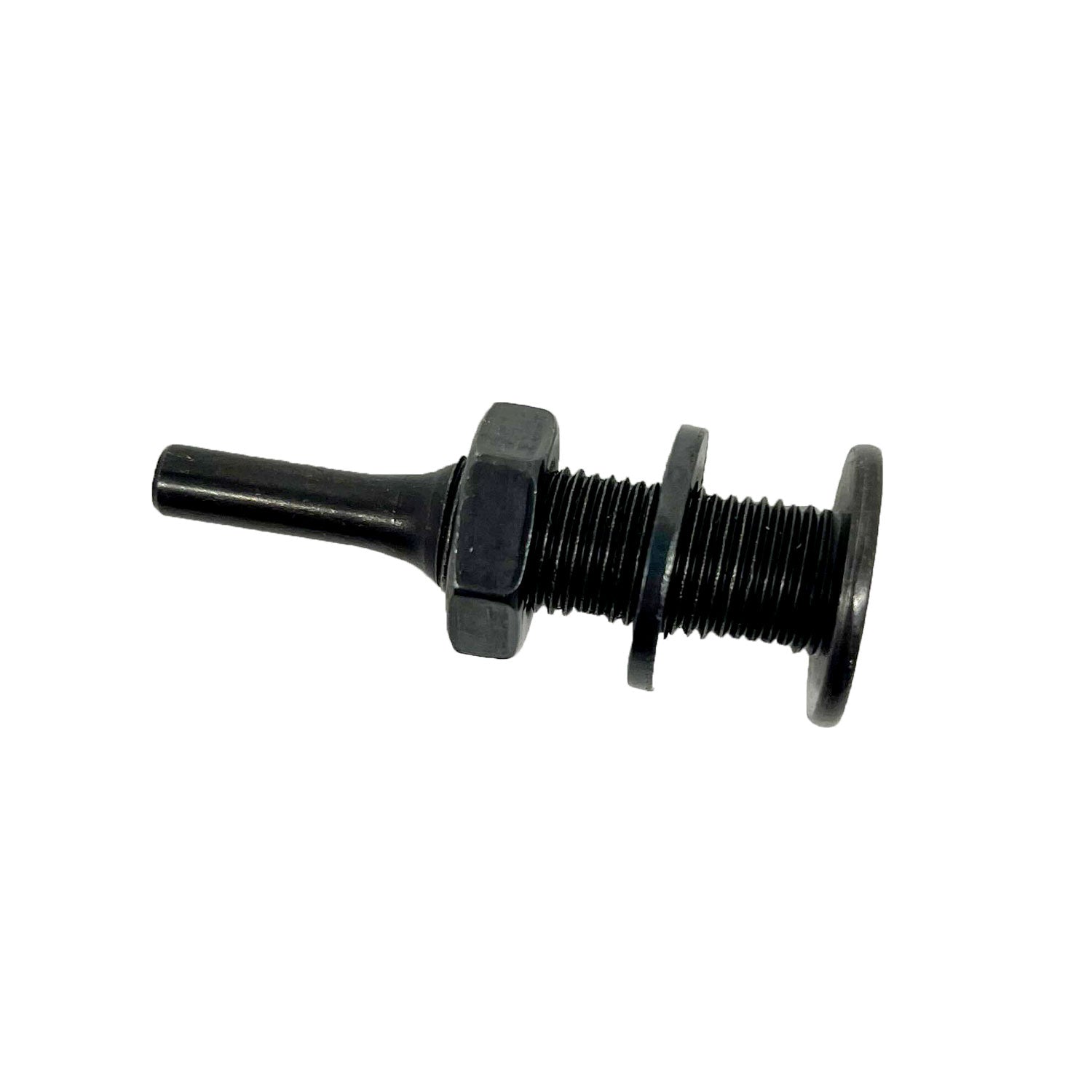

A mini buffing wheel is only as safe as the shaft it spins on. This mandrel is the one piece of steel that turns a 2", 3" or 4" mini buff with a 1/2" arbor hole into a tool you can chuck in a drill or die grinder: a 1/4" shank on one end, a 1/2" threaded arbor on the other, with the washer and fastening nut that clamp the wheel. It is about 2-1/4" long, short enough to stay rigid at die-grinder speed.

Every one of our Mini Buff Kits ships with this mandrel; Mini Buff Packs do not, which is why it is listed on its own. Wheel refinishers who keep a cut wheel and a color wheel each on their own mandrel, and anyone who bought a pack, order it here. It also carries our mini surface prep wheels with the same 1/2" hole.

• 1/4" shank fits any drill chuck and standard straight or angled die-grinder collets
• 1/2" threaded arbor matches the arbor hole on all our 2", 3" and 4" mini buffing wheels
• Washer and fastening nut included, so the wheel is clamped, not just slid on
• Steel construction, about 2-1/4" long, for rigidity at die-grinder speed
• Buy one per compound so cut and color wheels stay on their own shafts
• Free shipping on orders over $200; 30-day returns on unused product

Which mini wheels does the 1/2" mandrel fit, and which does it not?

This is a single-item listing (Default Title), so the only choice is how many to buy. What matters is matching it to the right wheels.

• Mini Buffing Wheels (1/2" arbor hole): yes. Every 2 Inch, 3 Inch and 4 inch wheel in 20, 40 or 60-Ply, Yellow or UBM, mounts on this mandrel.
• Mini Surface Prep wheels with a 1/2" hole: yes, the same arbor and nut carry them.
• Full-size airway buffing wheels (6" and up): no. They are too large and heavy for a 1/4" shank, and their center plates and clinch rings are not sized for a 1/2" arbor. Use the machine's own spindle or insertable safety flanges.
• Surface Prep Buff and Blend discs (6" to 14"): no, for the same reason, even though the smaller discs share a 1/2" hole.

How many? One mandrel does the job, but most people who polish regularly buy two or three so a cut wheel, a color wheel and a finish wheel each live on their own shaft and can be swapped in the chuck in seconds.

What are the mandrel's dimensions?

Stack thickness matters. A 20-Ply wheel is 1/4" thick, 40-Ply is 1/2" and 60-Ply is 3/4", so the same mandrel takes any single wheel with the nut fully engaged. If you want to double up thin wheels for a wider face, check that the nut still has full thread engagement before you run it.

What tools does the 1/2" mandrel run in?

• Conventional drills, corded or cordless: chuck the 1/4" shank as deep as it will go and tighten all three jaws. The most common home-shop and mobile setup.
• Straight die grinders with a 1/4" collet: the tool for reaching straight into wheel windows and pipe ends, and the one that runs mini buffs at their intended speed.
• Angled die grinders with a 1/4" collet: for the back of spokes, lug areas and anywhere the tool body would otherwise hit the part.

Mini buffing wheels should be run at approximately 10,000 to 12,000 RPM, which is where a die grinder operates. A drill turns them slower; they still polish, just with less cut. Whatever the tool, stay within the wheel's rated speed and make sure the shank is fully seated so the mandrel cannot walk out under load.

How to mount a mini buffing wheel on the mandrel

1. Remove the nut and washer from the threaded arbor.
2. Slide the wheel on so its 1/2" arbor hole sits on the threaded section and the face of the wheel rests against the shoulder of the mandrel.
3. Replace the washer, then the nut, and tighten firmly with a wrench. The wheel must not be able to spin on the arbor; a wheel that slips will burn the hole and run out of round.
4. Chuck the 1/4" shank fully in the drill or collet and tighten.
5. Spin it up pointed away from you and watch the rim. A wheel that wobbles is not seated on the shoulder; stop and remount it.
6. Charge and buff. Touch the compound bar to the running wheel for a second, then work with the wheel turning away from edges so it cannot grab.
7. Re-check the nut after the first few minutes and whenever you change wheels; sewn cotton compresses slightly under the clamp.
8. Keep one mandrel per compound if you can, and wipe the arbor clean before mounting a wheel for a different stage. Wear eye protection and a respirator.

Use it for / don't use it for

Use it for

• Mounting 2", 3" and 4" mini buffing wheels with a 1/2" arbor hole in a drill or die grinder
• Mini surface prep wheels with the same 1/2" hole
• Keeping cut, color and finish wheels on separate shafts for quick changes
• Replacing the mandrel from a Mini Buff Kit, or adding one to a Mini Buff Pack

Don't use it for

• Full-size airway buffing wheels or Surface Prep Buff and Blend discs of any diameter
• Wheels with any arbor hole other than 1/2"; a loose or forced fit will run out of true
• Running with the nut loose or with only partial thread engagement
• Tools without a proper 1/4" chuck or collet
