54" x 85" Sanding Belt, 3 PACK

Single-head 54-inch wide belt sanders with an 85-inch belt loop are the machines countertop, butcher-block and tabletop shops lean on: one head, one belt at a time, and a grit change between passes. That is why these 54" x 85" belts on X-weight poly-cotton cloth come three to a pack, so a shop can keep a calibrating grit, a surfacing grit and a finishing grit on the shelf without buying by the case.

Closed-coat aluminum oxide covers surfacing and finishing on hardwood, MDF and veneer; zirconia takes the heavy calibrating pass on glued-up slabs. Both are offered from 36 to 400 grit. We convert them in Anaheim, California, and can cut any other 54-inch length to order.

• Three belts per pack: a calibrating, surfacing and finishing grit for a single-head machine
• Closed-coat aluminum oxide, 36–400 grit, for butcher block, hardwood slabs, MDF and veneer
• Zirconia at 36–120 grit for calibrating thick glued-up countertops and tabletops
• X-weight poly-cotton cloth that tracks steadily on a 54-inch drum
• Anti-static backing releases dust to the collector and resists loading
• Converted in Anaheim, California; other 54-inch lengths made to order

Which grain for countertops and slabs on a single-head sander?

With one head you change belts between passes, so most shops run both grains: zirconia for the first pass, aluminum oxide for everything after it.

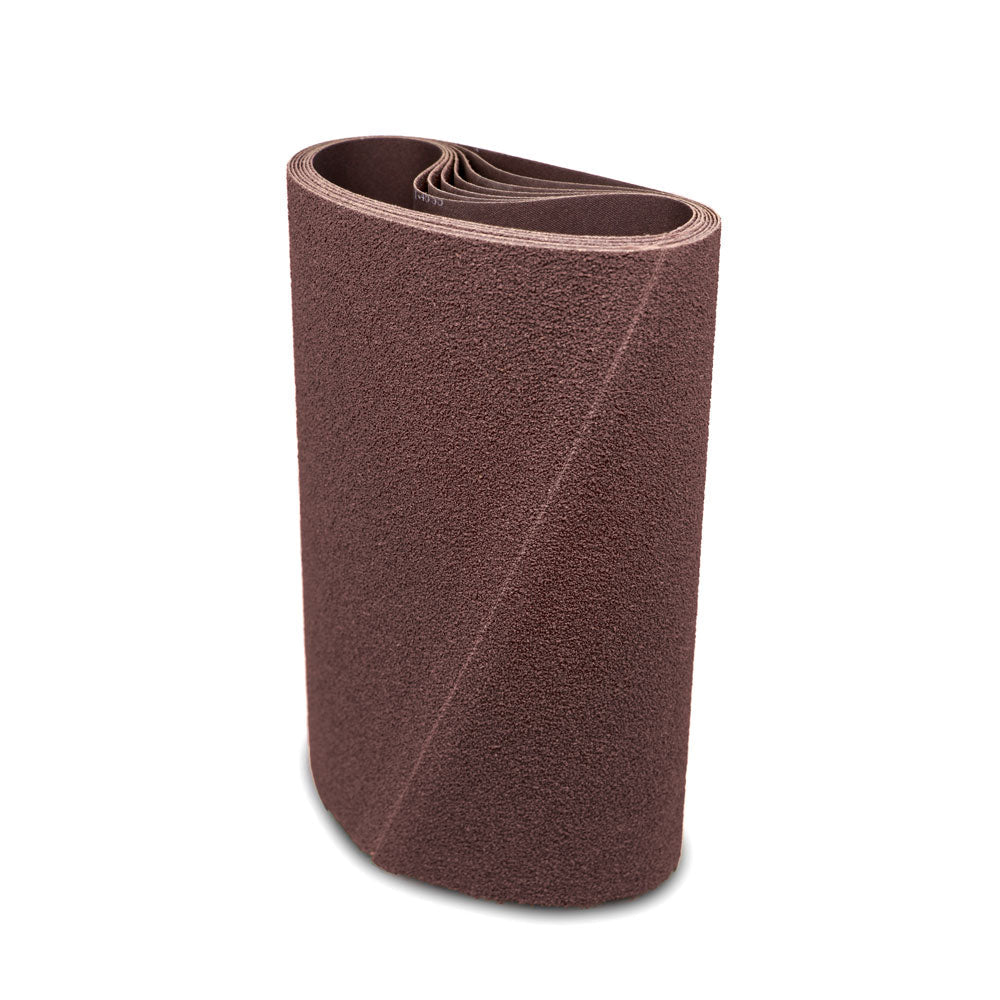

• Cloth Closed Coat A/O: aluminum oxide on fully grain-covered cloth. It gives the flattest, most even scratch on maple, walnut, oak and cherry butcher block, on MDF and on veneered panels, and it is the grain to use from 80 grit through the final 180–220 pass before oil or finish. Closed coat carries more grain than open coat and lasts longer on hardwood; open coat is only worth considering on very soft, pitchy softwood, which is rare on a countertop line.

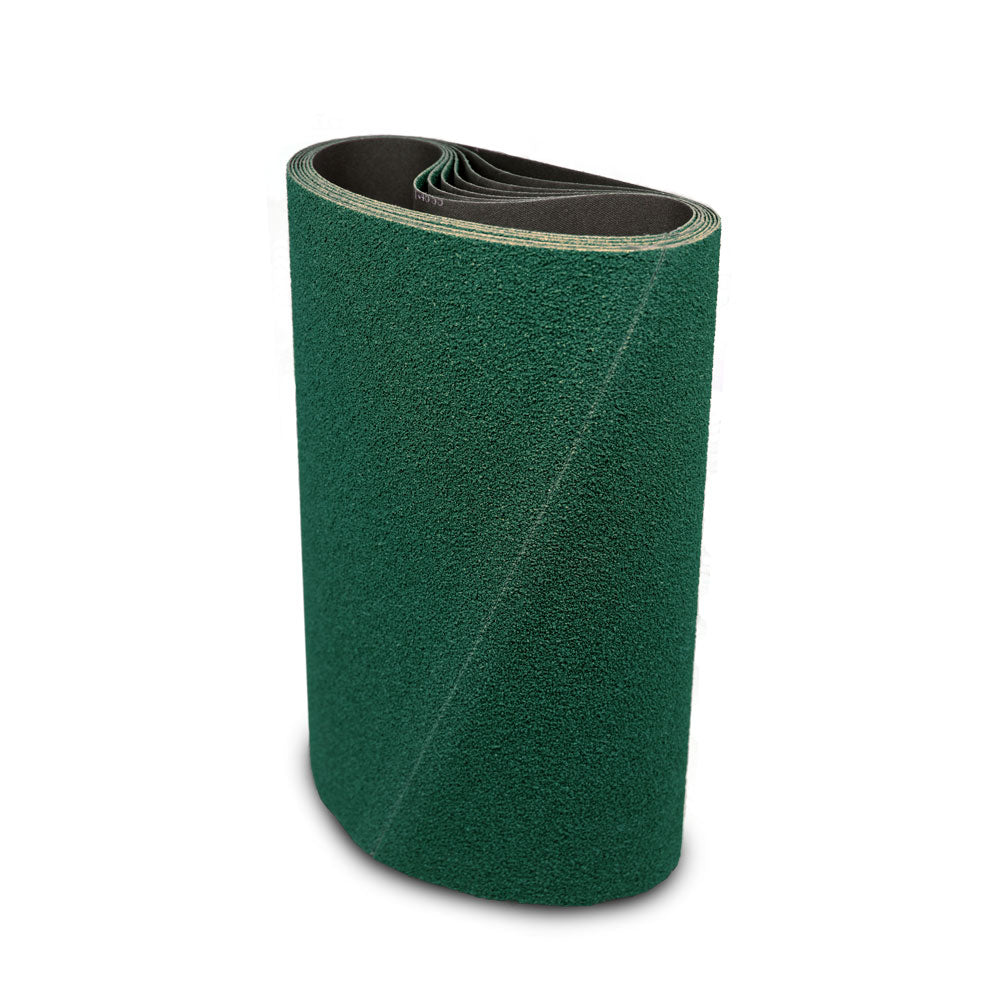

• Zirconia: the calibrating grain. A 36, 40 or 60 grit zirconia belt on a thick glued-up slab keeps cutting through glue lines and end grain because the grain fractures under load instead of rounding over. It needs a real depth of cut to work; a light skim glazes it. Above 120 grit switch to aluminum oxide for the finish.

For metal work on a 54-inch machine, closed coat is always the answer: aluminum oxide for aluminum and brass sheet, zirconia for mild steel plate, with a metal-rated collector.

Grit guide for butcher block, tabletops and panels

A typical three-belt set for butcher block is 60, 100 and 150; for stain-grade panels, 80, 120 and 180. Never skip more than one grade between belts.

What machines take a 54" x 85" belt?

• Single-head 54-inch wide belt sanders in countertop, butcher-block, tabletop and door shops whose plate reads 54" x 85".
• 54-inch calibrating sanders running ahead of a separate finishing machine.
• Wide belt sanders set up for aluminum or steel sheet, with closed-coat aluminum oxide or zirconia and a dedicated metal-rated collector.

Match both dimensions to the plate. Some machines of this class are built around a 53-inch belt rather than 54; we stock both, and the width matters as much as the length because the belt must clear the tracking sensors and the drum ends. Length tolerance on most sanders is about a quarter inch. Our belts run bi-directionally; inspect the joint tape before each mounting. Other 54-inch lengths are converted as custom belts in about 3 days.

How to get the most out of it

1. Centre the oscillation before the first slab. Let the belt run empty and watch it settle; adjust so it swings evenly about the middle of the drum.
2. Calibrate in light passes. On a thick glued-up slab take 1/32" or less at 36–60 grit. Deep passes stall the motor, heat the belt and cup the slab.
3. Flip the slab on alternate passes when flattening butcher block so both faces end up parallel and internal stress does not bow the finished top.
4. Keep feed speed up and never stop the conveyor with a slab under the head. Dwell burns maple and cherry instantly.
5. Change belts between grits, not between slabs. Run every piece in the batch through one grit, then change; three belts in a pack makes that easy.
6. Run strong extraction and clean the belt with a crepe rubber eraser at light pressure as soon as the surface starts to shine.
7. Hang belts to store them, off the floor and away from sunlight and humidity.

For persistent belt failures see our guide to why wide sanding belts break; for ripple and washboard marks see the woodworking chatter Q&A.

Use it for / don't use it for

Use it for

• Flattening and finishing butcher block, countertops and glued-up tabletops
• Solid-wood doors, drawer fronts and panels before stain or oil
• MDF, plywood and veneered panels before paint
• Flatting sealer and primer at 320–400 on a light-pressure pass
• Aluminum and mild steel sheet on a metal-rated wide belt sander

Don't use it for

• Machines plated for a 53-inch width or a different length
• Zirconia above 120 grit where the finish matters; switch to aluminum oxide
• Wet sanding on a machine not built for it
• One collector shared between wood dust and steel dust

Specifications
